By: Shajia Saleem
Abstract
GLO/GOX represents an essential enzyme in photorespiratory metabolism in plants, catalyzing glycolate oxidation to glyoxylate and producing H₂O₂, a signaling molecule involved in various physiological processes and defense mechanisms. Here, we identified and analyzed six putative glycolate oxidase genes in tomatoes and classified them into three groups based on phylogenetic analysis, gene structure, and motif composition. Our data showed that tandem duplication contributed mainly to expanding the GLO gene families in tomatoes. The promoter analysis identified the specific cis-regulatory elements (CREs) related to stress, light, hormone, and development. Gene ontology analysis found that all six SlGLO genes are mainly associated with oxidoreductase activity. Transcriptome analysis of the interactions of tomatoes with AMF emphasized the role of SlGLO genes in fruit nutrition improvement. The gene expression varied among different SlGLOs. Specifically, SlGLO2 showed the lowest expression, while SlGLO1 and SlGLO3 were highly expressed in red fruits; SlGLO6 was highly expressed in green but unripe in red fruits. Alternatively, SlGLO4 and SlGLO5 were the highest, indicating involvement in the potential amelioration of fruit quality. Gene expression analysis using qRT-PCR showed that SlGLOs are differentially expressed across different organs and at various stages of fruit development, implicating this gene family in plant development and physiology. Furthermore, RNA-seq comparison under biotic stress demonstrated differential expression within different tomato cultivars. SlGLO1 and SlGLO2 were moderately expressed, while SlGLO3 expression decreased in infected roots. SlGLO4 and SlGLO6 were upregulated within the resistant Mogeor cultivars, indicating their involvement in pathogen-associated transcriptional regulation. Overall, our study demonstrates the multifaceted role of SlGLO genes in stress response, development, and fruit quality improvement.
1 Introduction
Glycolate oxidase (GOX/GLO) is an ancient peroxisomal eukaryotic enzyme involved in photorespiratory metabolism [42]. It is a member of the superfamily of (L)−2- hydroxy acid-oxidases ((L)−2-HAOX) [14, 25, 29]. It participates in the oxidation of various 2-hydroxy acid substrates, such as catalyzing the transformation of glycolate into glyoxylate while generating hydrogen peroxide (H2O2) [90].
GOX/GLO short-chain α-hydroxy-acid oxidases are flavin mononucleotide (FMN)-dependent enzymes, where FMN acts as a cofactor in oxidation-reaction modulating reactive oxygen species (ROS) mediated signal transduction in plants [51]. The reaction is divided into two significant steps: in the first half, glycolate is oxidized to form glyoxylate by FMN, which is a two-electron transfer process, whereas, in the second half, FMN is re-oxidized by O2, yielding H2O2 [52, 53]. Therefore, GLO is considered an essential engine of H2O2 production, accounting for approximately 70% of total H2O2 in C3 plants, and also serves as a significant signaling molecule [50].
GLOs have been identified and characterized in several plant species, such as Arabidopsis [42, 67] tobacco [90], spinach [16], maize [62], and rice [50]; they are reported to play various roles in plant physiological processes, photosynthetic regulation, and biotic and abiotic stress resistance [90]. GLO strongly regulates photosynthesis via feed-back inhibition on Rubisco activase; suppressing GLO results in glyoxylate accumulation, halting photosynthesis and resulting in stunted rice growth, whereas over-expressing GLO exhibits improved photosynthesis activity [43, 89]. In addition, the induced activity of GLO has been frequently observed in response to environmental stresses such as high temperature and light [22, 68], drought, cold assimilation, and freezing [5, 7, 19]. Furthermore, H2O2 and salicylic acid (SA) activity have been correspondingly induced upon elevated levels of GLO, suggesting the critical role of GLO in triggering stress defense response [22, 31]. In spinach, SoGLO2 and SoGLO3 are involved in oxalate biosynthesis under normal conditions [16]. Interestingly, GLO-derived H2O2 demonstrated a paramount role in gene-to-gene and non-host resistance in Arabidopsis thaliana and Nicotiana benthamiana [67]. Intriguingly, GOX proteins were abundantly observed in resistant B. napus plants exhibiting tolerance against Leptosphaeria maculans [10, 15]. Similar studies were performed in barley and melon against Bipolaris sorokiniana and Pseudoperonospora cubensis [74, 83]. Moreover, GLO is found to be involved in barley stripe mosaic virus infection in barley and basal defense against Pseudomonas syringae in tomatoes [1, 59, 91]. Alban et al [46] showed that GOX2 in DspA/E triggers cell death and non-host resistance against E. amylovora [46, 69].
Tomato (Solanum lycopersicum) is a commercially valuable horticulture crop and a model plant for genetic and genomic research, including ripening mechanisms and stress studies [82, 85]. According to the Food and Agriculture Organization (FAO) of the United Nations (UN) statistics, it is the third most widely consumed vegetable, with a global production of 187 million metric tonnes (MMT) in 2020 (http://www.fao.org/faostat/en/#data/QC, [2, 81]). Consumers favor it due to its abundant nutritional value and unsurpassable carotenoids, especially beta-carotene and antioxidants, vitamins A, B, C, and E; nicotinic acid and lycopene [2, 71, 80, 82]. However, its production and quality are highly challenged by various biotic stresses. Several studies have demonstrated the function and characterization of GLO in different plants. However, there is a need to uncover the genome-wide mechanisms of GLO proteins in tomatoes against biotic resistance.
In the present study, we utilized bioinformatics methods to identify and comprehensively characterize SlGLOs and analyze their physiochemical properties, evolutionary relationship with other plant species, synteny relationship, conserved domain architecture, chromosomal locations, and cis-regulatory elements in the promoter region of the GLO gene family of Solanum lycopersicum. The expression characteristics of SlGLOs in different tissues under biotic stress will also provide a theoretical foundation for exploring their potential functions.
2 Materials and methods
2.1 Sequence retrieval and characterization
The Pfam database retrieved the conserved sequence for the FMN-dependent dehydrogenase (FMN_dh) domain sequence (PF01070) [57]. The domain sequence was used to identify GLO genes in the tomato genome from the Phytozome v13 database by employing the BLAST-P algorithm with the E value ≤ 1 × 10–5 [34]. The retrieved protein sequences were then subjected to the National Center for Biotechnology Information (NCBI) Conserved Domain Database (CDD) to confirm domain presence. Protein sequences lacking the FMN_dh domain were excluded [54]. The molecular weight, the number of amino acids, and the isoelectric point (pI) were determined using ProtParam and Expasy-Compute pI/Mw [32, 73]. The nuclear localization was predicted using the online server NLSdb [12]. The chromosomal location, accession numbers, and sequence information were retrieved from the Phytozome database [34, 70].
2.2 Multiple sequence alignment, phylogenetic analysis, and motif analysis
The amino acid sequences of six GLO proteins from S. lycopersicum (tomato), five GLO proteins from A. thaliana (Arabidopsis), five GLO from Spinacia oleracea (spinach), and four GLO from Daucus carota (carrot) were aligned using MUSCLE in MEGA X [27]. With the MEGA 11.0 version, the phylogenetic tree was constructed using the neighbor-joining (NJ) method, and the tree's dependability was assessed using default settings of pairwise deletion and 1000 iterations of bootstraps [84]. SlGLO, AtGLO, SoGLO, and DcGLO protein sequences were subjected to Multiple EM for motif elicitation (MEME Suite version 5.4.1) to identify the conserved motifs [11, 77].
2.3 Gene structure analysis and chromosomal mapping
Using the Gene Structure Display Server (GSDS 2.0), a schematic diagram of the gene structure of SlGLO genes was constructed [38]. The chromosomal locations of SlGLOs were retrieved from the Phytozome database and visualized using TB tools [20, 58].
2.4 Gene duplication and synteny analysis
Gene duplication events were analyzed using the Multiple Collinearity Scan toolkit (MCScanX) with default settings [21, 40]. To determine the time of divergence of the glycolate oxidase gene family in tomatoes, the synonymous (Ks) and nonsynonymous (Ka) substitution rates were estimated by using the Simple Ka/Ks Calculator (NG) in TBtools [20]. The Ks values were subsequently utilized to approximate date the duplication events according to T = Ks/2λ, where the value of ‘λ’ for tomato = 1.5 × 10–8 substitutions/synonymous site/year [4, 17, 36].
The tandem and segmental duplication events were analyzed using the Multiple Collinearity Scan toolkit (MCScanX) with default parameters for synteny analysis. The synteny relationships between the paralogous GLO genes in tomatoes were visualized using the Advanced Circos module in TBtools [20, 39]. Three synteny analysis maps were constructed to examine the orthologous gene conservation of SlGLOs with three other plant species for dual synteny analysis. This was accomplished using the Dual Synteny Plotter in TBtools [6, 20].
2.5 Prediction of Cis-regulatory elements
To predict plant cis-regulatory elements in the promoter regions, a 1000-bp sequence upstream from the initiation codon of each putative SlGLO gene was retrieved from the tomato genome (Solanum lycopersicum ITAG4.0) via the Phytozome database. The cis-elements within these promoter sequences were then identified using the PlantCARE database (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/) [48].
2.6 Subcellular localization prediction and gene ontology analysis
Subcellular localization of SlGLO genes was predicted with the help of an online tool, WoLF PSORT, available at (https://wolfpsort.hgc.jp/) [8, 37]. Gene Ontology (GO) term enrichment analysis was performed to investigate the participation of SlGLO genes in various molecular functions and biological processes. The ontology information was retrieved from the Phytozome database [13, 34, 65]. Moreover, a dot plot displaying other vital biological processes associated with the SlGLO genes was constructed to visualize the enriched pathways and the number of genes involved. This was accomplished by implementing ShinyGO 0.76 (http://bioinformatics.sdstate.edu/go/) [3, 33].
2.7 Transcriptome analysis
The expression profile of the tomato glycolate oxidase genes was investigated using the RNA-seq data obtained from the Expression Atlas database (https://www.ebi.ac.uk/gxa/) [60]. The expression was analyzed in vegetative tissue (apical meristem), reproductive tissues (flower bud, seed, and pericarp), and fruits at two stages from mycorrhizal and non-mycorrhizal plants. The expression profile of SlGLO genes in root tissues under biotic stress conditions was also analyzed. The RNA-seq data for each particular tissue was obtained from experiments available at Expression Atlas [60] for the gene expression analysis. The RPKM values were log2 transformed, and expression patterns were visualized as Heat maps generated in the HeatMap Illustrator in TBtools [20].
2.8 MicroRNA targets prediction
The putative microRNA target sites analysis was performed to predict the miRNAs that could most likely target the tomato GLO genes. Six SlGLO genes were searched for sequences complementary to miRNAs at psRNATarget (https://www.zhaolab.org/psRNATarget/) with default parameters [23].
2.9 RNA extraction and cDNA synthesis
The total RNA was extracted from the Tomato (Solanum lycopersicum) cultivar ‘Micro-Tom’ using TRIzole™ reagent. Grind the tissues mechanically using Liquid nitrogen. All the samples were taken in the Eppendorf tube containing 1 ml of TRIzole™ reagent followed by the addition of 200 µl chloroform. The samples were homogenized and incubated on ice for 3–5 min. After incubation, they were centrifuged at 12,000 rpm for 15 min at 4 °C. The supernatant was then transferred to a new Eppendorf tube, and an equal amount of chilled isopropanol was added. The samples were incubated on ice for 10 min and centrifuged at 12,000 rpm for 10 min. The supernatant was discarded, and the pellet was obtained. The pellet was washed with 70% ethanol and centrifuged at 7500 rpm for 10 min at 4 °C. The supernatant was discarded, and the pellet was air-dried for 15–30 min. Then, 50–60 µl RNase-free water was added, and the pellet was stored at − 80 °C until use. According to the manufacturer's protocol, the cDNA was synthesized using TOROBlue® qRT PreMix with gDNA Eraser 2.0. 2 ng/µL RNA was treated with 5 × gDNA Eraser at 37 °C for 5 min, followed by 65 °C for 2 min. Then, 5xqRT premix II and reverse transcript enzyme mix were used. RT reaction was conducted using 37 °C for 15 min and 98 °C for 2 min and was kept 4 °C.
2.10 Semi-quantitative PCR
Semi-quantitative PCR was performed using the following protocol. cDNA was used as a template. The PCR reaction mixture was prepared accordingly: 2X M5 Taq HiFi PCR mix (with blue dye) 10 µL, forward qPCR primer (20 ng/µL), forward qPCR primer (20 ng/µL), dH2O was to make a total volume of 20 µL. The PCR reaction was conducted according to the following profile: Initial denaturation of 95 °C for 10 min, 30 cycles of denaturation of 95 °C for 30 s, annealing 55 °C for 30 s, extension of 72 °C for 20 s; and final extension at 72 °C for 10 min. Actin7 was used as a housekeeping gene.
2.11 Quantitative PCR
qPCR was performed using TOROGreen® qPCR Master Mix. The PCR was conducted using a 2-step profile per the manufacturer’s protocol. The qPCR was performed in three replicates under conditions of pre-denaturation at 95 °C for 60 s, followed by 40 cycles of denaturing at 95 °C for 10 s and annealing/extension at 60 °C for 30 s. Quantification was performed using the 2−ddCT method and was normalized through the quantity of actin7 as a reference gene. The sequences of all the gene-specific primers are enlisted in supplementary data. The forward and reverse primer of the corresponding gene ID are written below.
Gene ID | Forward primer | Reverse primer |
|---|---|---|
SlGLO1 | GAGGAATTAGGCGAGGAACAG | TTGCTTTACCCCAGATTCTCC |
SlGLO2 | AGCTGTTCTGATTGGTCGAC | TGGCTTCTGGTAATGTCATCC |
SlGLO3 | GAGGCGAGGAACAGACATATTC | CCCTGAGCATTTGAATAACCTG |
SlGLO4 | TCCAGACTATCACTTCAATGCC | TGTTGCAGGGACATAATCGAG |
SlGLO5 | TCGTGAAAAGAGCAGAAAGGG | TCCAAGATCCAGTCCTTCAAAG |
SlGLO6 | GCTCTTACAGTTGATACCCCG | ATATGAAGCCAATCCAGAGTCC |
ACT7 | GGTATCCACGAGACTACCTACA | TGCTCATACGGTCAGCAATAC |
3 Results
3.1 Identification and characterization of GLO gene family in tomato
A BLASTp was used to identify the GLO gene family in tomatoes using the FMN-dependent dehydrogenase domain (PF01070), and six GLOs were identified against the tomato genome ‘S. lycopersicum ITAG4.0’ available at Phytozome v13. These six SlGLO genes were renamed according to the order of their physical positions on chromosomes (Table 1). The physio-chemical analysis predicted that the molecular weight of the GLO gene family members in tomatoes ranged from 24.96 kDa to 40.68 kDa, while their lengths varied from 230 to 371 amino acids. The six proteins'isoelectric points (pI) ranged from 6.76 to 9.04. Moreover, none of the six SlGLO genes showed Nuclear Localization Signals (NLS) as predicted by NLSdb (Table 1).
3.2 Comparative phylogenetic analysis of GLO gene family
The phylogenetic analysis showed that these twenty GLO proteins could be divided into three distinct groups: A, B, and C (Fig. 1). Group A is comprised of a total of ten GLO proteins, of which two were tomato (SlGLO4 and SlGLO6), three of Arabidopsis GOX proteins (AtGOX1, AtGOX2, and AtGOX3), whereas, the remaining are of spinach GLOs (SoGLO1 and SoGLO5) and carrot GLOs (DcGLO1, DcGLO3, and DcGLO4), respectively. ‘Group B’ consists of eight genes in total, including three tomato genes (SlGLO1, SlGLO2, and SlGLO3), two Arabidopsis genes (AtHAOX1 and AtHAOX2), two spinach genes (SoGLO2 and SoGLO3) and one carrot gene (DcGLO2). ‘Group C’ contains only two GLO genes from tomato (SlGLO5) and the other from spinach (SoGLO4). Since proteins in common clad exhibit similar structures and functions, it can be inferred that all the GLO genes in similar clades might have structural and functional similarities (Fig. 1).

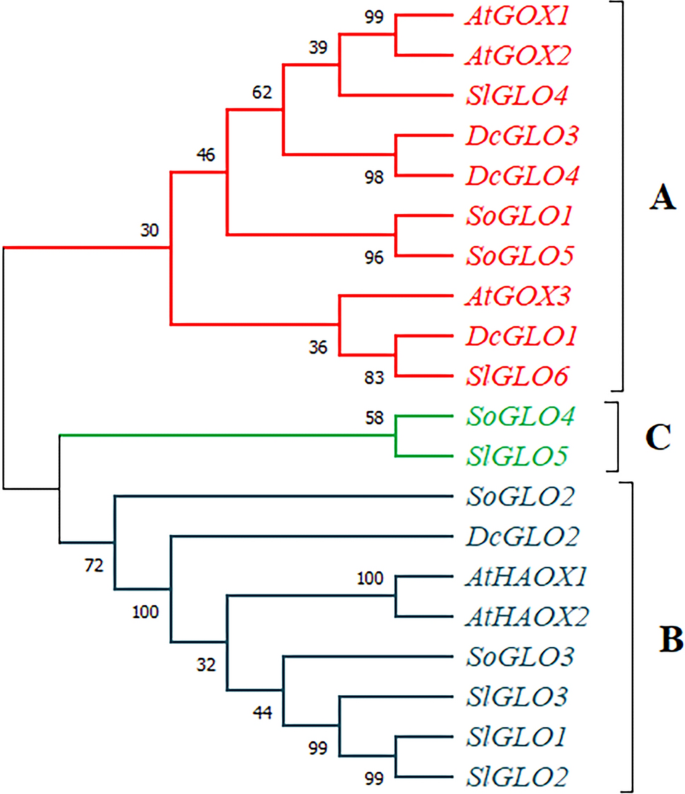

Phylogenetic analysis of GLO genes in S. lycopersicum, A. thaliana, S. oleracea, and D. carota. The phylogenetic tree was constructed by aligning the full-length sequences of six tomato, five Arabidopsis, five spinach, and four carrot glycolate oxidase proteins using MEGA11 software by the Neighbor-Joining method and with 1000 bootstrap replicates [84]. The genes in the three groups, A, B, and C, are indicated by red, blue, and green colors, respectively
3.3 Gene structure and motif analysis
Five SlGLO genes, SlGLO1, SlGLO2, SlGLO3, SlGLO4, and SlGLO6, have ten introns, whereas one gene, SlGLO5, has six introns. Comparing the intron–exon display of the glycolate oxidase gene family in tomato and Arabidopsis further highlights the conservation of this gene family among plants—the GLOs from the same group showed strong resemblances regarding their corresponding gene structures (Fig. 2).

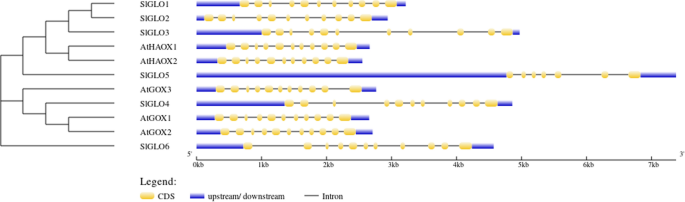

Gene structure analysis of Arabidopsis and tomato GLO genes was carried out using GSDS 2.0. The yellow round rectangles indicate exons (CDS), the blue rectangles indicate upstream and downstream, and the black lines indicate introns
Motif analysis was conducted with the help of the MEME Suite Program. As a result, a total of 14 distinct motifs were identified. The schematic representation of these motifs, FMN_dh domain, and the phylogenetic tree are provided. The motifs are represented in their relative locations within the proteins. Among the 14 identified motifs, Motif 1 was considered the FMN_dh domain and was uniformly observed across all the GLO proteins. All the glycolate oxidase proteins from tomato, Arabidopsis, spinach, and carrot contained Motif 1 and 3. Motif 2 was prevalent exclusively in group A and group B members. Motifs 4, 5, 8, and 11 were observed in almost all the GLO proteins except for a few members, while Motif 7 could be observed in all group A and B members. Motif 14 was explicitly present in two spinach glycolate oxidase gene family members (SoGLO1 and SoGLO4), whereas all the twenty GLOs harbored Motif 10 except for a group A member. In general, it can be inferred that most of the closely related members in the phylogenetic tree possessed typical motif compositions, suggesting a structural and functional similarity within the genes of the same group (Fig. 3).

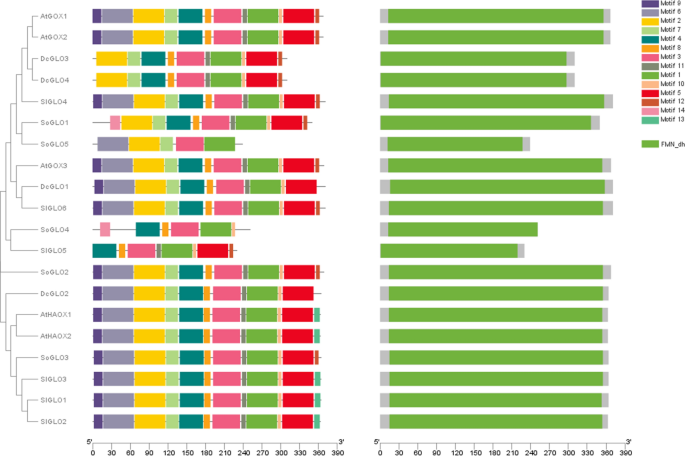

Distribution of 14 motifs along with the conserved FNN_dh domain in the GLO proteins of tomato, Arabidopsis, spinach, and carrot; the motif analysis was carried out using MEME 5.4.1 [11]. Interlinking it with a phylogenetic tree to clearly understand their association, the bars represent motifs with different color codes for various motifs
3.4 Chromosomal distribution, gene duplication, and synteny analysis
The positions of the SlGLO genes were analyzed in the tomato genome and displayed as a map. The results showed that the six SlGLOs were randomly distributed on four chromosomes. Three of them, SlGLO1, SlGLO2, and SlGLO3, were located on chromosome 03. The remaining SlGLOs, SlGLO4, SlGLO5, and SlGLO6, were reported to be present on chromosome 07, chromosome 08, and chromosome 10, respectively. Thus, chromosome 03 exhibited the maximum number of SlGLO genes (Fig. 4a).

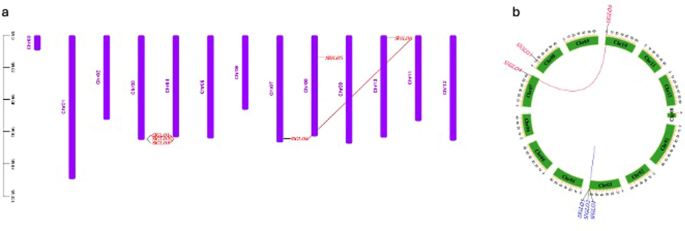

a Distribution of the six GLO (SlGLO) genes on tomato chromosomes. The approximate location of each SlGLO gene is marked with a short black line. Red lines indicate the pairing of genes. b Genome-wide synteny analysis of tomato GLO genes. Chromosomes are shown in green, and chromosome numbers are displayed in black. The red line indicates the genes resulting from segmental duplication, and the blue line shows those resulting from tandem duplication
Synteny analysis was conducted to analyze the potential duplication events and evolutionary patterns of the GLO genes in tomatoes. Four paralogous pairs of SlGLO genes were detected. These genes were located either on the same chromosome or on different chromosomes, suggesting that tandem duplication and segmental duplication might have contributed to the expansion of the GLO gene family in tomato (Fig. 4a, b).
Furthermore, the duplication dates were traced by estimating the Ka and Ks values. The results showed that the Ka/Ks ratio ranged from 0.14 in the SlGLO4/SlGLO6 pair to 0.29 in the SlGLO1/SlGLO2 gene pair. The predicted date for segmental gene duplication of the paralogous pair SlGLO4/SlGLO6 was calculated to be 20.1 mya (million years ago), while for the remaining three paralogous pairs, the tandem duplication date was estimated in the range of 10.5 mya for the SlGLO1/SlGLO2 gene pair to 17.7 mya for the paralogous pair SlGLO3. All four paralogous gene pairs in tomato had a Ka/Ks ratio greater than 0.1 but less than 1, suggesting purifying selective pressure during GLO gene family evolution and conservation of functions SlGLO1 (Fig. 5; Table S2).

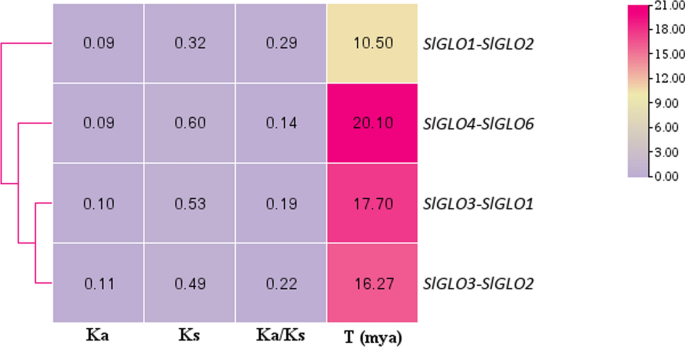

Time of gene duplication estimated for different paralogous pairs of tomato GLO genes based on the Ka and Ks values. Analysis was conducted using the Simple Ka/Ks Calculator (NG) in TBtools, where the Ka/Ks value represents the ratio of nonsynonymous (Ka) to synonymous (Ks) mutations
The dual synteny analysis results showed that tomato GLO genes showed three syntenic gene pairs with Arabidopsis, five with carrots, and one with spinach. Moreover, the details of these gene pairs showed that among the six tomato GLO genes, SlGLO1, SlGLO4, and SlGLO6 were found in the three comparative syntenic maps, which indicates that these three genes might have played fundamental roles in the GLO gene family (Fig. 6).

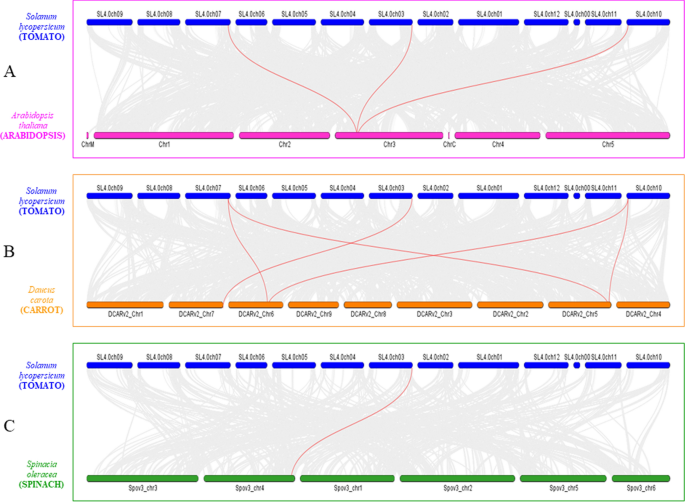

Analysis of syntenic GLO gene pairs between Solanum lycopersicum (tomato) and three other plant species, including A. Arabidopsis thaliana, B. Daucus carota, and C. Spinacia oleracea. Gray lines indicate all the collinear blocks in the genome, and red lines indicate the syntenic GLO gene pairs. Tomato chromosomes are represented in blue, whereas Arabidopsis, carrot, and spinach are represented in pink, orange, and green, respectively
3.5 Cis-regulatory elements analysis
Several cis-acting regulatory elements were found in the promoter regions of each of the six tomato GLO genes. The results identified the maximum and minimum CREs in SlGLO5 and SlGLO2, respectively. Other than core cis-elements such as CAAT-box and TATA-box, we found a variety of putative CREs that could be divided into various categories based on their known functions, such as hormone-responsive cis-regulatory elements, stress-responsive cis-elements, and cis-elements associated to cellular development. Among the hormonal regulation, cellular growth, and stress response-associated CREs, the stress-responsive cis-elements were the most common, and light-responsive cis-regulatory elements constituted a large percentage. In addition, some unnamed elements that were randomly distributed in the SlGLO genes were also detected. In a total of 75 cis-elements obtained as a result, cis-elements responsive to different kinds of stress were observed, such as cis-elements essential for anaerobic induction (ARE), cold and dehydration-responsive element (DRE core), cis-elements involved in drought-inducibility (MBS) and low-temperature responsiveness (LTR), and wound-responsive element (WUN-motif). Other than these, some of the different abiotic and biotic stress-responsive elements (MYB, MYB-like sequence, MYC, Myb, Myc, STRE, TC-rich repeats, as-1, WRE3, and W box) were very common in most of the SlGLOs. It has been reported that light-responsive elements (LREs) significantly occur in the genes crucial for light-associated transcriptional activity [9]. In the SlGLO promoters, these kinds of elements occur at various frequencies. It included CREs such as those involved in light-responsiveness (3-AF1 binding site, ABRE4, ACE, Box 4, G-Box, G-box and GT1-motif). This cis-element was reported to be part of a ‘module’ for light response (AE-box), and CREs that were reported to be parts of other light-responsive elements (chs-CMA2a, GA-motif, GATA-motif, I-box, TCCC-motif, and TCT-motif). Each SlGLO gene harbored at least three of these LREs. The category of hormone-responsive elements included cis-elements such as abscisic acid-responsive elements (ABRE and ABRE3a), auxin-responsive elements (AuxRR-core and TGA-element), gibberellin-responsive elements (TATC-box, P-box, and GARE-motif), ethylene-responsive element (ERE), and cis-elements involved in salicylic acid responsiveness (TCA and TCA-element) and methyl jasmonate-responsiveness (CGTCA-motif and TGACG-motif). Each of the six SlGLOs contained at least four of these hormone-responsive elements. On the whole, cis-elements associated with cellular development were present in the lowest numbers in the tomato glycolate oxidase gene family members; various kinds of CREs were detected, such as those involved in seed-specific regulation (RY-element), meristem expression (CAT-box and CCGTCC-box), endosperm expression (GCN4_motif), zein metabolism regulation (O2-site) and differentiation of the palisade mesophyll cells (HD-Zip 1). Moreover, cis-element involved in circadian control (circadian) was found in SlGLO1, SlGLO2, and SlGLO3 promoters. In addition to the entire CREs mentioned above, cis-elements were also observed, such as (A-box) in SlGLO3; (CARE) in SlGLO5; (NON) in SlGLO3; (OCT) in SlGLO6 and (AAGAA-motif) in SlGLO3, SlGLO5 and SlGLO6. Hence, it can be inferred that the presence of a significant number of cis-acting regulatory elements suggests a robust participation of the SlGLO gene family in biotic and abiotic stress responses, light-controlled activities, hormone-signaling and growth and development processes (vegetative and reproductive). The distribution of cis-regulatory elements identified in the six GLO genes of tomato and their functional annotations have been presented (Fig. 7; Table S3).

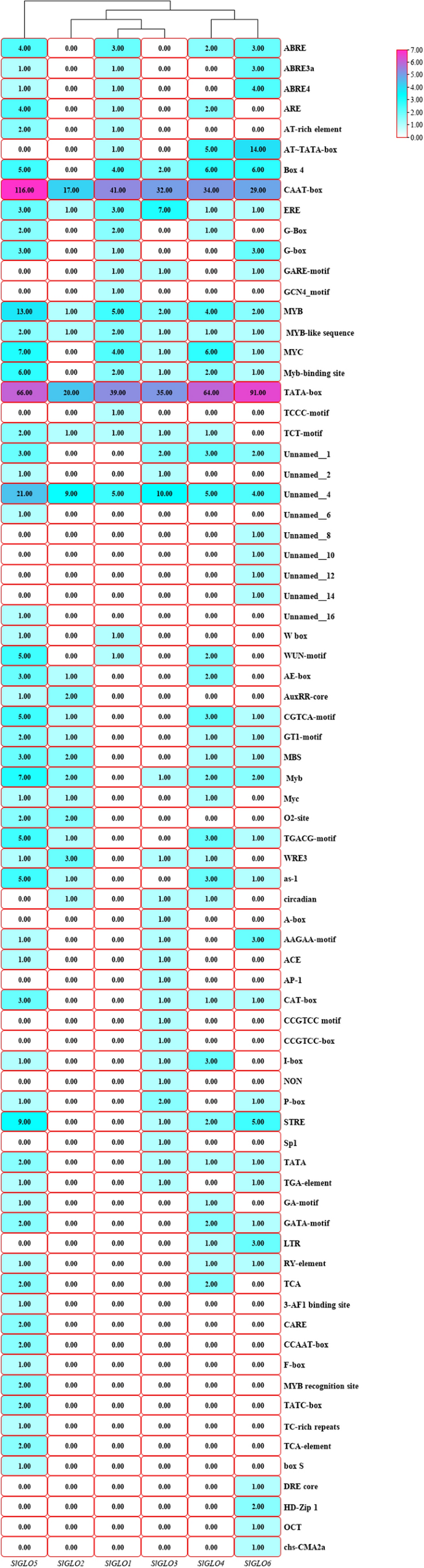

Variety of cis-regulatory elements identified in the putative SlGLO promoters. Color legends indicate the number of cis elements in each of the six SlGLO genes
3.6 Subcellular localization and gene ontology enrichment analysis
The predicted subcellular localization of the SlGLOs indicated that three (SlGLO1, SlGLO2, and SlGLO3) were peroxisome. The remaining three (SlGLO4, SlGLO5, and SlGLO6) were situated in cytosol Members of the glycolate oxidase gene family of the model plant Arabidopsis have also been found to be localized to the peroxisomes [28] (Fig. 8).

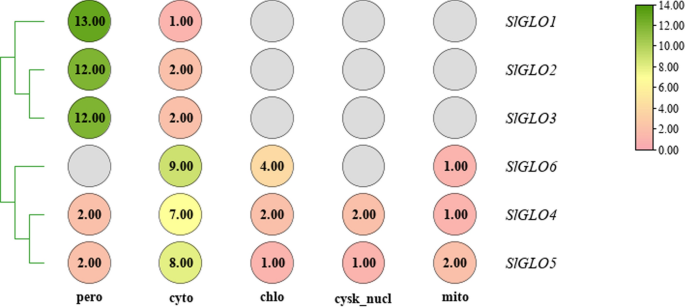

Subcellular localizations of SlGLO genes predicted by employing WoLF PSORT [37]
Gene ontology analysis of the tomato glycolate oxidase gene family members conducted via Phytozome v13 revealed that most of them were involved in molecular functions, including oxidoreductase activity (GO:0016491), and were found to be FMN-binding (GO:0010181). In contrast, biological processes related to these genes were reported to be the oxidation–reduction process (GO:0055114). It could be observed that the gene ontology results were highly consistent with the phylogenetic analysis; SlGLO members from group B (SlGLO1, SlGLO2, and SlGLO3) showed similar GO molecular functions such as oxidoreductase activity and FMN-binding. Group A's members, i.e., SlGLO4 and SlGLO6, shared another molecular function, such as catalytic activity, whereas SlGLO5 from group C exhibited another additional molecular function related to nitronate monooxygenase activity. Moreover, orthologs of the SlGLO genes in Arabidopsis were identified against the Arabidopsis genome (Arabidopsis thaliana TAIR10) in the Phytozome database (Table 2).
GO term analysis identified thirteen enriched pathways, each associated with at least one gene from the six SlGLOs. Some of them include the hydrogen peroxide biosynthetic process, reactive oxygen species biosynthetic process, photorespiration, defense response to another organism, immune response, response to external biotic stimulus, response to the bacterium, and biological process involved in interspecies interaction between organisms (Fig. 9).

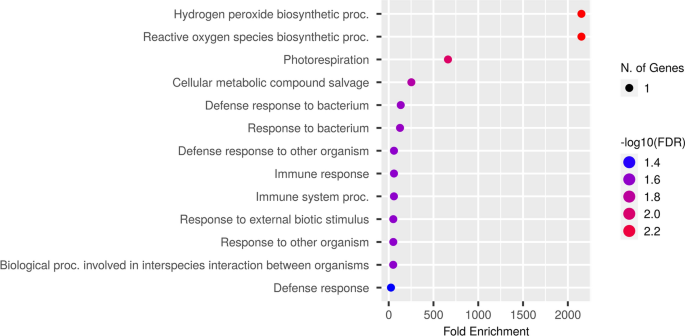

Gene Ontology analysis of SlGLO genes performed at ShinyGO 0.76 [33]. A fold enrichment chart as a dot plot represents the biological processes and several associated SlGLO genes
3.7 Gene expression analysis in vegetative and reproductive tissues
The gene expression was analyzed in both vegetative and reproductive tissues. According to the transcriptomic data, all six SlGLO genes were expressed in most of the tissues; however, the extent of expression of these genes in each tissue/organ was different from that of the other.
For vegetative tissues, previously generated RNA seq-data was obtained from an experiment designed to study the effects of silencing the gene ‘MSH1’ (MutS HOMOLOG1) in Solanum lycopersicum (cultivar Rutgers). For this purpose, tomato wild-type plants and MSH-1 mutant plants were compared for the phenotypic traits [60, 92]. To investigate the expression profiles of SlGLO genes, the gene expression data obtained from the apical meristem tissues of 4-week wild type, dwarf-DR, mild-DR, and epiF3 plants was analyzed and studied (where DR represents ‘developmental reprogramming’). The expression patterns have been presented in the form of a Heat map. In a low-to-high range, the lowest expression level was detected for SlGLO1 (almost undetectable), followed by SlGLO3 and then SlGLO2, which exhibited higher expression levels in the analyzed samples. SlGLO5 was expressed moderately, whereas SlGLO4 and SlGLO6 depicted the highest expressions. SlGLO4 was expressed to the maximum level from all six genes in all the analyzed apical meristem samples. An important point to be noted here is that an upregulation was observed in the expression of the gene ‘SlGLO2’ in two mutant plants compared to the wild type (Fig. 10A; Table S4).
A Heat map showing the expression profile of SlGLOs in the apical meristem tissues of four tomato genotypes (wild type and MSH1 mutant plants). The expression of SlGLO2 was upregulated in two of the mutants, whereas the rest of the genes showed a uniform expression in all the samples. B The expression profile of SlGLO genes in pericarp and seed, at five dpa (days post-anthesis) and seven dpa (days post-anthesis) in two nearly isogenic lines of tomato differing for the fruit mass locus ‘fw3.2’

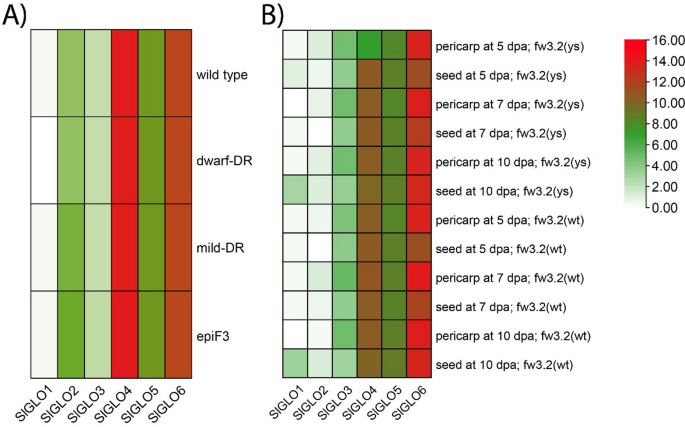

The gene expression profiles in reproductive tissues were investigated and observed to understand the connection between the GLO family in tomatoes and plant reproductive growth and development. In an experiment, different phenotypic traits, such as those related to fruit and seed masses, were compared between two nearly isogenic lines of tomato that differed for the fruit mass locus, fw3.2. One of the most isogenic lines (NIL) had the large-fruited allele, fw3.2(ys), and the other line had the small-fruited allele, fw3.2(wt). The tomato cultivar ‘Yellow Stuffer’ was selected, and plants were grown under field and greenhouse conditions. The RNA-seq data of flower buds, pericarp, and seed tissues was collected at various stages [18]. For the gene expression analysis in our study, the RNA-seq data of flower buds, pericarp, and seed was obtained from two experiments available in the Expression Atlas database [60]. Both the experiments were related to the same research/study. The expression profile of flower buds depicted that SlGLO1 and SlGLO3 were expressed in a lower range, whereas SlGLO2 and SlGLO5 showed moderate expressions. The maximum gene expression level was observed for the two SlGLOs, SlGLO4 and SlGLO6. SlGLO4 represented the highest expression levels in the analyzed flower bud samples (Table S5).
In seed and pericarp tissues, the expression level of SlGLO1 was slightly higher in seed samples than in the pericarp. While SlGLO2 and SlGLO3 exhibited higher expression levels in pericarp tissues than in seed. SlGLO4 and SlGLO5 presented varying expression patterns and were expressed moderately in both tissues. SlGLO6 was the only gene with significantly higher expressions in the pericarp tissues in all the analyzed samples. Thus, the spatial variations in the expressions of SlGLO genes in different tissues indicate that they might be involved in various growth and development processes in tomato plants (Fig. 10B; Table S6).
3.8 Gene expression analysis in tomato fruits of mycorrhizal plants
Previous studies have shown the interaction of hydroponically grown tomato plants with Arbuscular Mycorrhizal Fungi (AMF) improved the nutrient quality of tomato fruits [76]. In the SlGLO gene expression, RNA-seq data was derived from an experiment that aimed to study the effects of mycorrhization on the nutritional quality (such as BRIX values and carotenoid contents) of tomato fruits. Picolino cultivar of tomato was cultivated and inoculated with the AMF (Rhizophagus irregularis). After a short interval of inoculation, the mycorrhization rates were determined, and RNA-seq was performed for mature green and red fruits of mycorrhizal (treated) and non-mycorrhizal (control) plants [60, 76]. The gene expression data for all six tomato GLOs was extracted and analyzed. The results demonstrated that SlGLO2 expressed at a low level, whereas the expression levels of SlGLO3 and SlGLO1 were slightly higher in the red fruits of mycorrhizal plants. SlGLO6 displayed high expression levels in green fruits and reduced expression in red fruits of both samples (treated and controlled). We observed a maximum expression for SlGLO4 and SlGLO5 in all the analyzed fruit samples (Fig. 11; Table S7).

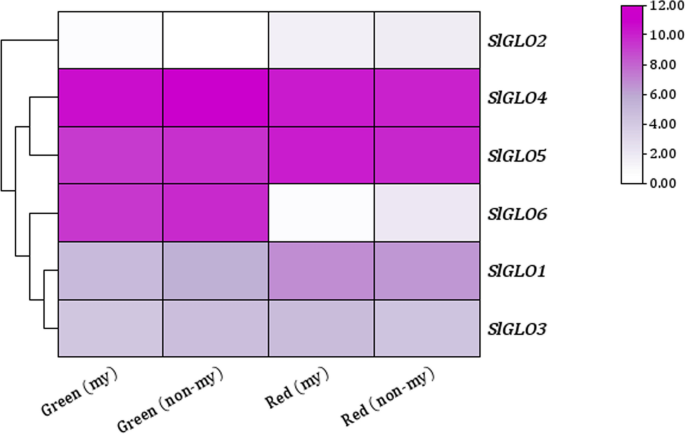

Expression profile of SlGLO genes in green (early ripening stage) and red (complete ripening stage) fruits of mycorrhizal and non-mycorrhizal tomato plants
3.9 Gene expression analysis under biotic stress conditions
The gene expression data was obtained from a comparative RNA-seq-based transcriptomic analysis experiment in two tomato cultivars, resistant Mogeor, and susceptible Moneymaker, to investigate the plant-pathogen interactions. Biotic stress was provided by inoculating young tomato plants with Pyrenochaeta lycopersici (for comparison, the control plants were not inoculated with P. lycopersici) [56, 60]. The RNA-seq data obtained from the ‘root’ tissues of infected and control samples of both the cultivars was analyzed to study the expression patterns of SlGLO genes in response to biotic stress. We observed that all six SlGLOs had shown varied expressions. It was demonstrated that SlGLO1 and SlGLO2 showed negligible expression levels in all the samples. SlGLO3 showed lower-than-moderate expression in the infected root tissues and insignificant expression in the control. The expression level of SlGLO5 was in a considerable range in all the samples, while SlGLO4 and SlGLO6 displayed highly significant expression levels. The maximum expression level was noted for SlGLO6 in the infected root samples of resistant Mogeor cultivar. Since the RNA-seq data in this experiment was obtained at the three-leaf visible stage, the genes exhibiting the minimum expressions (SlGLO1 and SlGLO2) might be expressed at further stages of development (Fig. 12; Table S8).

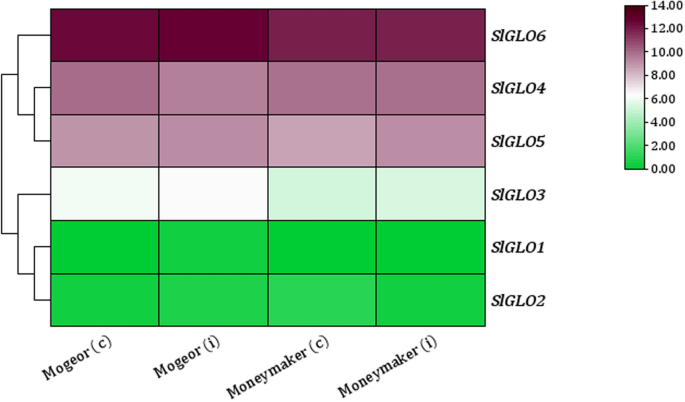

Heat map showing the expression profile of SlGLO genes under biotic stress; expression patterns of SlGLOs in infected and control root samples of two genotypes: resistant Mogeor and susceptible Moneymaker
3.10 qRT-PCR expression patterns of SlGLO genes in various organs and developmental stages of C. sativus
qRT-PCR results showed that SlGLO genes were expressed in leaf, stem, anthesis, immature green, orange, and red ripe stages. Specifically, SlGLO1 was upregulated in orange and was low in anthesis. SlGLO2 was upregulated in leaf and anthesis but showed low expression in orange and red ripe stages. SlGLO3 was upregulated in the stem, red ripe, and orange stages while showing low expression in the leaf and immature green stages. SlGLO4 was upregulated in leaf and anthesis but exhibited low levels in the stem, anthesis, and immature green stages, with little to no expression in the orange and red ripe stages. SlGLO5 was upregulated in orange, stem, and anthesis, while in immature green and red ripe stages, it showed minute expression. SlGLO6 was upregulated in immature green and leaf stages while exhibiting low levels in orange and red ripe stages (Fig. 13).

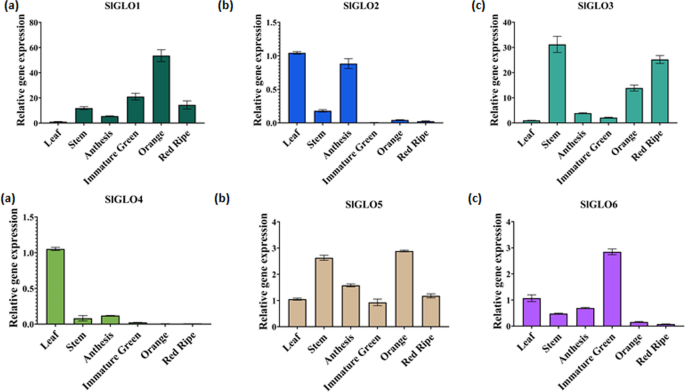

The qRT-PCR results show the expression levels of six SlGLO genes in various organs and developmental stages, including leaf, stem, anthesis, immature green, orange, and red ripe stages
3.11 MicroRNA targets prediction
The mature tomato miRNA sequences were retrieved from the Plant miRNA Encyclopedia database (PmiREN2.0) available at (https://www.pmiren.com/). To predict the potential targets of tomato miRNAs among the SlGLO genes, the identified tomato miRNAs were analyzed using psRNATarget with default parameters, a miRNA target prediction tool for plants. A total of 17 miRNAs targeted five out of the six SlGLO genes (Table S9). None of these microRNAs targeted the remaining SlGLO gene. The lengths of these miRNAs ranged from 20 to 21 nucleotide bases, and their E-values varied from 4.5 to 5. Among all the SlGLOs, SlGLO4 was the only gene targeted by just one miRNA, while two miRNAs targeted SlGLO2 SlGLO5.Furthermore, SlGLO1 and SlGLO3 were targeted by eight and four miRNAs, respectively. SlGLO6 was reported not to be targeted by any of these miRNAs. While discussing based on groups, SlGLOs from group B were targeted the most by these miRNAs, which were targeted by fourteen microRNAs. On the other hand, group A SlGLO members were targeted by only one miRNA, which is the least among all the groups, while the single SlGLO gene family member from group C was targeted by two miRNAs (Table 3; Table S9).
4 Discussion
This study identified six tomato glycolate oxidase (SlGLO) genes based on the conserved FMN domain (Table 1). Interestingly, the GLO family is relatively small. The number of GLO proteins in Solanum lycopersicum is comparable to Arabidopsis thaliana and Oryza sativa, which have five and four members, respectively [24, 50]. Phylogenetic analysis grouped the GLO proteins into three clusters: A, B, and C (Fig. 1). Motif and domain analysis confirmed that all GLO family members possess the FMN-dependent dehydrogenase domain, with thirteen additional motifs distributed among the proteins. Group C had the least motifs, while groups A and B featured group-specific motifs like Motif 12 and Motif 13, though not universally present. These conserved motifs may contribute to group-specific functions. Exon–intron analysis revealed that all six SlGLO genes contain introns, with exons ranging from 7 to 11 and 6 to 10 (Fig. 2). Groups A and B contained ten introns each, while SlGLO5 from group C had six. The organization is comparable to Arabidopsis’ glycolate oxidase gene family, suggesting conservation in structure [47, 96]. Gene duplications, classified as tandem or segmental, were analyzed based on chromosomal locations and synteny (Fig. 4a, b). Among the four paralogous pairs detected, three were tandem duplications, and one was segmental. Ka/Ks ratios for these pairs ranged from 0.14 to 0.29, indicating purifying selection [49, 87]. Duplication events occurred 10.5–20.1 mya (Fig. 5; Table S2), suggesting that tandem duplications primarily expanded the SlGLO family, potentially driving functional diversification. Dual synteny analysis revealed the highest number of syntenic gene pairs between tomato and carrot, indicating evolutionary homology (Fig. 6). Cyanobacterial GLO-like proteins likely served as the ancestral form, with duplications predating higher plant diversification [29, 45, 79]. Promoter analysis of SlGLO genes revealed associations with stress-related mechanisms, hormonal regulation, and development [26, 55]. Hormone-responsive elements included those related to ABA, auxin, and salicylic acid, suggesting a role in hormonal regulatory pathways. Stress-responsive elements, such as MBS, LTR, MYB, STRE, and W-box, were prevalent, indicating involvement in biotic and abiotic stress responses [9, 41]. Light-responsive cis-elements suggest roles in light-mediated activities (Fig. 7; Table S3). GO analysis confirmed FMN binding, crucial for photorespiration, fatty acid oxidation, and stress responses (Table 2) [72]. Expression patterns of SlGLO genes were analyzed using the Expression Atlas database. SlGLO4 and SlGLO6 showed the highest expression in apical meristem tissues, while SlGLO1 and SlGLO3 were minimally expressed. SlGLO2 displayed a unique expression pattern (Fig. 10; Table S4). These results suggest that SlGLO genes may regulate vegetative growth, consistent with reports linking glycolate oxidase to stress responsiveness and metabolic processes [92]. In reproductive tissues, all six SlGLOs were expressed. SlGLO4 and SlGLO6 exhibited the highest expression in flower bud tissues, with SlGLO6 also prominent in pericarp tissues. SlGLO1 showed slight seed expression, while SlGLO4 was notable in pericarp and seeds. High expression levels of SlGLO4 and SlGLO5 in fruit tissues suggest a role in improving nutritional quality (Table S5–S7).
Under stress conditions, SlGLO genes showed differential expression in the root tissues of infected plants. Group A genes, particularly SlGLO6, were highly expressed in response to Pyrenochaeta lycopersici infection, with stronger expression in resistant cultivars (Table S8). This aligns with previous reports linking glycolate oxidase to plant defense mechanisms, where H2O2 produced during glycolate oxidation serves as a defense signal [67]. While Arabidopsis and Nicotiana studies highlight glycolate oxidase’s positive role in disease resistance, rice studies have noted adverse effects [90]. qRT-PCR results supported these findings, revealing differential expression of SlGLO genes across organs and fruit development stages [63]. SlGLO1 was upregulated during fruit maturation, while SlGLO2 and SlGLO4 showed high expression in leaves and reproductive stages, pointing to roles in photosynthesis and early development. SlGLO3’s expression in stems and mature fruits suggests a role in structural support and ripening. SlGLO5 and SlGLO6’s expression during early fruit development and photosynthesis highlights their developmental roles [78]. MicroRNA analysis identified 17 miRNAs targeting five of the six SlGLO genes (Table 3; Table S9). miR169, known for its role in stress tolerance, targeted SlGLO1, suggesting its suppression during stress [64]. miR167 family members targeting ARF6 and ARF8 in Arabidopsis regulate flower maturation, which might similarly apply to tomato SlGLO genes [88]. miRN3104’s targeting of SlGLO4 may influence histone modification regulation [61]. These findings underscore the potential regulatory roles of miRNAs in SlGLO gene expression during growth and stress. This study’s findings provide comprehensive insights into the structure, evolution, and functional potential of the SlGLO gene family. Functional characterization is essential further to elucidate their roles in development and stress mechanisms.
Data availability
No datasets were generated or analysed during the current study.
